Equations, equivalent mechanical network
Equivalent mechanical network

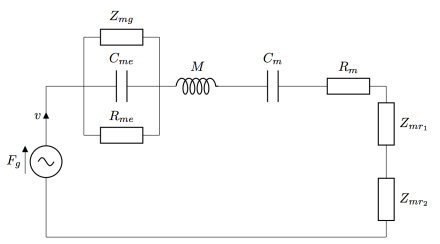

The equivalent circuit from a mechanical point of view can be obtained by passing the "electrical" elements through the gyrator, and the "acoustical" elements into the mechanical domain through the transformers:
with
The previous coupling equations can be reduced to one equations, in the mechanical domain:
.
